EOD/IED Hook and Line Kit
Description
The Hook & Line Kit provides a bomb technician with a wide range of equipment that can be deployed to gain access and to remove, manipulate and handle suspicious explosive devices contained inside buildings, vehicles, as well as in open areas.
It includes multiple of components for attaching line, anchoring pulleys and manoeuvring dangerous objects to a safe position. All components fit into a compact carrying case and can be easily carried by one person.
Gross Weight: About 25kg.
Package Dimension（about）: Big Case: 99*45*19cm; Small Case: 43*33*16cm;
Configuration List
|
Item No. |
Name |
Photo |
Qty |
Specification |
Material |
|
1 |
Main line |
 |
1 |
Length: 50m Diameter: 6mm |
|
|
2 |
Nylon rope with cove |
 |
2 |
Diameter: 7mm Length: 1.2m,2.5m Weight: 35g, 55g Load: ≤180kg |
Polypropylene rope |
|
3 |
Wire rope with sheath |
 |
4 |
Length: 2m Diameter: 1.5mm Length: 2m Diameter: 2mm Length: 2m Diameter: 3mm Length: 0.45m Diameter: 2mm |
Stainless steel |
|
4 |
Protecta |
 |
1 |
Aluminum, cygon |
|
|
5 |

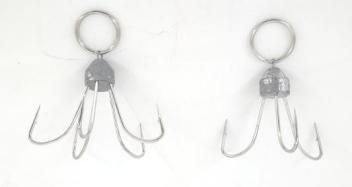

Hook |
 |
4 |
120*70*15mm 80*38*15mm 57*20*13mm 75*58*38mm |
Stainless steel |
|
6 |
Vise grip pliers |
 |
1 1 |
Length: 245mm Opening Length: 17-38mm Hemming aperture: 20mm |
Stainless steel 10 inch |
|
7 |
Screw eye |
 |
5 |
Galvanized iron material |
|
8 |
Ring |
 |
2 |
Thread:M8 |
Stainless steel |
|
9 |
Hammock |
 |
1 |
Length: 800mm Width: 20mm |
Nylon braided tape |
|
10 |
Shackle |
 |
2 |
Width: 12mm Notch Depth: 12.5mm Bore Diameter: 6.5mm |
Stainless steel |
|
11 |
Wedge nail |
 |
4 |
Chromium alloy |
|
|
12 |
Brace rod |
 |
1 |
Length: 745-1180mm |
|
|
13 |
Slide bar retainer |
 |
1 |
Opening Size: 200mm The depth of the clamp arm: 130mm |
|
|
14 |
Detachable pulley |
 |
4 |
Size: 210*75*40mm Applicable to rope: 4-10mm |
|
15 |
Fixed pulley with locking device |
 |
1 |
||
|
16 |
Master lock |
 |
5 |
||
|
17 |
Extension rod |
 |
2 |
Connecting screw hole: M10 Overall sizes: φ 13×80 φ 12×60 |
|
|
18 |
Online card block |
 |
1 |
||
|
19 |
Spherical clip |
 |
2 |
||
|
20 |
Adhesive fixed plate |
 |
10 |
Size: 90mm*90mm |
|
|
21 |
Vacuum chuck |
 |
1 |
Size: 400*115*110mm Sucker diameter: 115mm |
|
|
22 |
Dustpan |
 |
1 |
Size:80*310*160mm |
|
23 |
Escape-proof hook |
 |
2 |
Size: 135*80*12mm 110*80*12mm |
|
|
24 |
Ground anchor |
 |
2 |
Overall sizes: φ 65×60 φ 38×50 Drag ability: 5kg, 3kg |
|
|
25 |
Multi-purpose tool |
 |
1 |
Size: 100*50*22mm Weight: 195g |
|
|
26 |
Expansion link |
 |
1 |
Shrink Length 96cm Stretch Length 263cm |
Aviation aluminum |
